Advantages:

1. Faster maintenance

The new design makes maintenance faster and more convenient, and also greatly improves the efficiency of maintenance work.

All maintenance points are within reach by simply opening the door panels of the soundproof enclosure, and there is enough maintenance space to

make maintenance as quick and fast as an F1 car.

The volume is reasonable, and multiple blower groups can be installed side by side without taking up too much space. Whether it is an open unit or

a soundproof unit, it can be easily moved.

2. High efficiency and low noise reliable design

All designs follow the design principles of high efficiency, high reliability, energy saving and low noise. Soundproof models have been continuously

upgraded and optimized after acoustic testing to significantly improve these properties. Modular units made of galvanized metal sheets, each acou

stical panel has a silencing treatment on the inside, and the maintenance unit is a single door panel located on the front of the unit, which can be

removed to reach various maintenance points. This design allows units to be installed side by side, saving space. The sound enclosure model is

 equipped with a base for easy handling, and is equipped with a powerful small fan inside, so that the heat inside the unit is discharged in time. The

 inlet is equipped with a preliminary filter device to ensure reliable air intake without impurities.

3. Clean gas without oil

The rotor is not in contact with the rotor, the rotor and the shell, the gear and the bearing are far away from the cylinder, and the cylinder is clean and

oil-free.

4. Three-leaf host

Three-blade rotor host, so that the pulse noise of gas backflow is almost eliminated at the source, while protecting the fan itself and the air supply

pipeline from the impulse impact of backflow.

5. Rugged and durable

Our Roots fan hosts have higher machining accuracy and a balanced housing, and the excellent design allows the host to operate at higher pressures.

You can choose smaller and more efficient fan rotors according to different applications, which greatly reduces costs and improves reliability. The faster

 airflow of the smaller models leads to more efficient cooling, further improving unit durability o0

6. High reliability, long service life

The rotor, gear and bearing are not affected by impact loads, and the rotor is made of wear-resistant carbon steel for a longer service life.

7. Light weight, simple unit form

The single speed is very high, the structure is relatively compact, the types of accessories are less, the wearing parts are less, and the maintenance is

 more economical.

8. High precision synchronous bevel gear

High strength, high precision alloy steel helical gears, better synchronization, excellent stress absorption, smaller side voids, low vibration, low noise,

ultra-high precision, can be quiet and more accurate transfer of power, plays an important role in the rotor's outstanding volumetric efficiency. The

installation of the synchronous gear is carried out at room temperature, and the inner wall of the gear is completed after the use of 400MPa ultra-high

oil pressure, so that the shaft and the gear are as one, avoiding the metal anomalies caused by heating installation, and ensuring that the gear falls off

 due to heat during operation.

Seal strip rotor

Involute seal design effectively reduces the rotor's sensitivity to inhaled polluted air and the thermal effect caused by overload, effectively

protecting the main engine.

High-strength bearing

Large size, high-strength heavy-duty bearings, even at high speed, its load-bearing performance is also very outstanding, to ensure that the

main engine operation worry-free.

Large oil pan

Multiple optimizations ensure more uniform and effective lubrication of each bearing and synchronous gear, efficient cooling andsignificantly

 reduced power loss.

Labyrinth labyrinth seal

The multi-channel wear-free labyrinth seal is equipped with specially designed pressure balancing channels to ensure that the pressure balance

 between the gas and oil circuits and the compression type is completely oil-free.

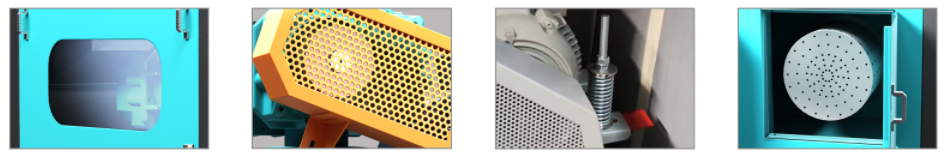

Convenient, efficient and reliable maintenance：

Soundproof enclosure oil lens window

The design of the external viewing window makes it easy to observe the oil level without opening the soundproof door panel,further

improving maintenance accessibility.

Belt guard

Standard with belt shield, safety protection considerations. Easy to disassemble and assemble, in a small shape, still retainsenough

maintenance space.

Maintenance-free belt automatically tensioned

Save the tedious operation of manual adjustment, real-time adjustment, more reliably prevent the efficiency loss and movingparts damage

caused by skidding.

External air filter cleaning design

Unique external cleaning filter element design, only open the small window housing to complete the air filter maintenance, convenient and

fast, save labor costs and time.
